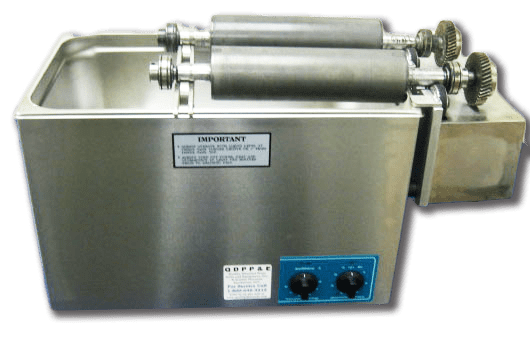

Supercell Ultrasonic Cleaning System
Supercell Ultrasonic Cleaning System
Includes:
- Stainless steel lid
- Heater
- Timer
- Removable stainless steel rotator
- Adjustable stainless steel support
Can clean up to 18″ rolls at a time or up to 4 Webtron 650/750 rolls at a time. The tank is available in up to 54″ length or other custom sizes available.
- Part # SC-650-18.5
- Cleans up to 18″ face length
- Part # SC-650-18.5-4ROLL
- Cleans 4 rolls up to 18″ face length
- Part # SC-650-18.5-6ROLL
- Cleans 6 rolls up to 18″ face length
- Part # SC-650-28
- Cleans up to 28″ Face Length
- Part # SC-650-38
- Cleans up to 38″ Face Length
- Other Custom Sizes Also Available!
- Call for additional details.

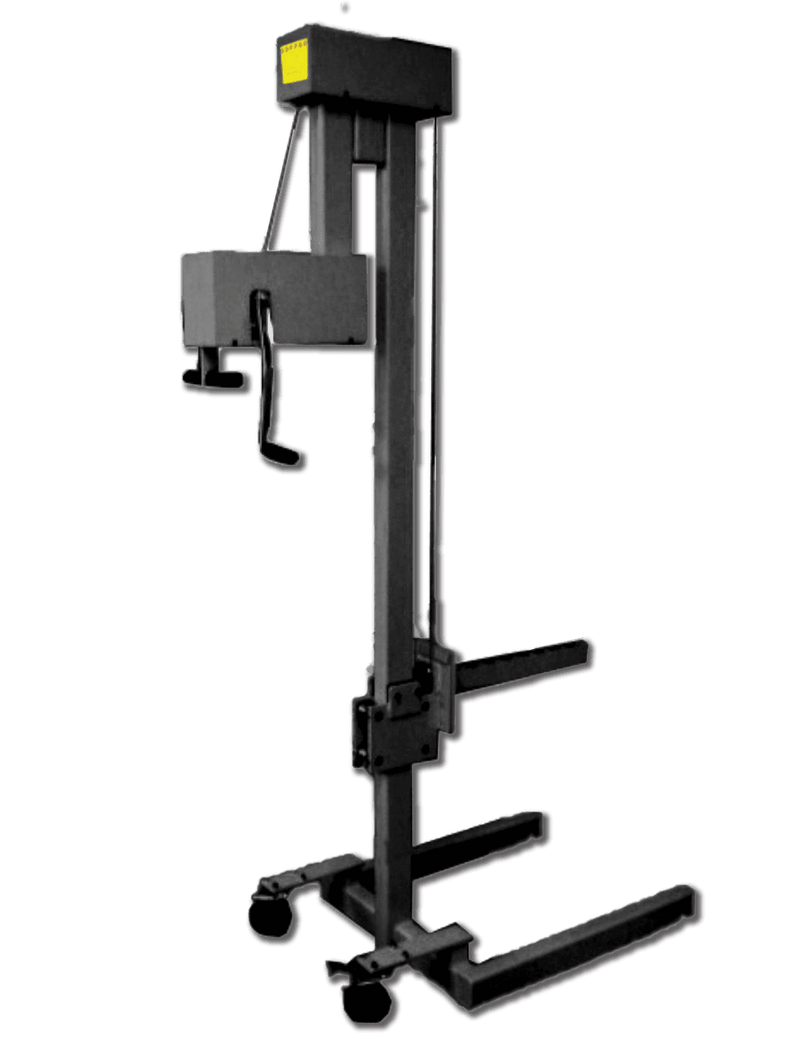

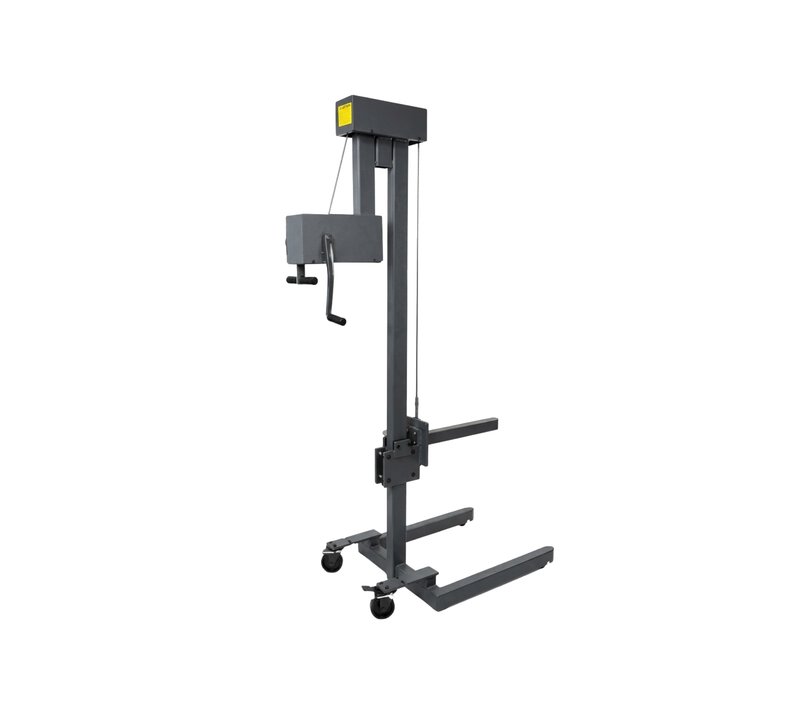

Supercell Roll Lift Cart
- Super-mover-A max lift height is 48″
- Super-mover-B max lift height is 63″
- Super-mover-C max lift height is 94″
- Custom heights available for additional cost
- Roller Boom Attachment (p/n: Super Boom): Allows the Operator to Easily Silde the Roll Along the Bearings for Easy Installation and Removal. 17″, 27
- Custom Lengths Available
- Ask About our New Die Hoist Attachment
- Call for additional details and options to customize your roll lift to fit your needs!

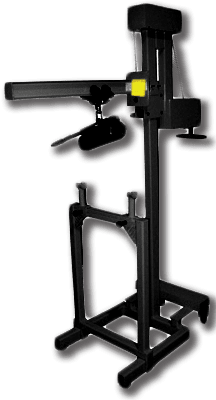

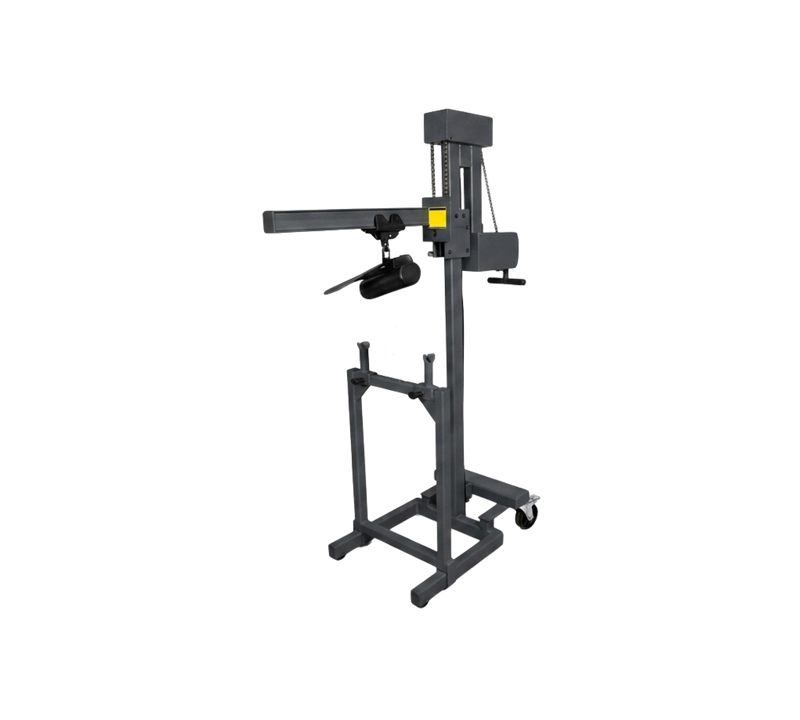

Supercell Mobile Die Hoist
- P/N ECNO-HOIST-PLFM
- Saves Time
- Easy to Use
- 400lb Maximum Capacity
- Assists in Eliminating Expensive Die Damage
- Adjustable Cradle for Different Die Widths
- Attachment Interchangeable with Supercell Roll Lift Cart – Call to Discuss
- Available in 59″ & 70″ Lift Heights
- Custom Sizes Available!
- Call for additional details.

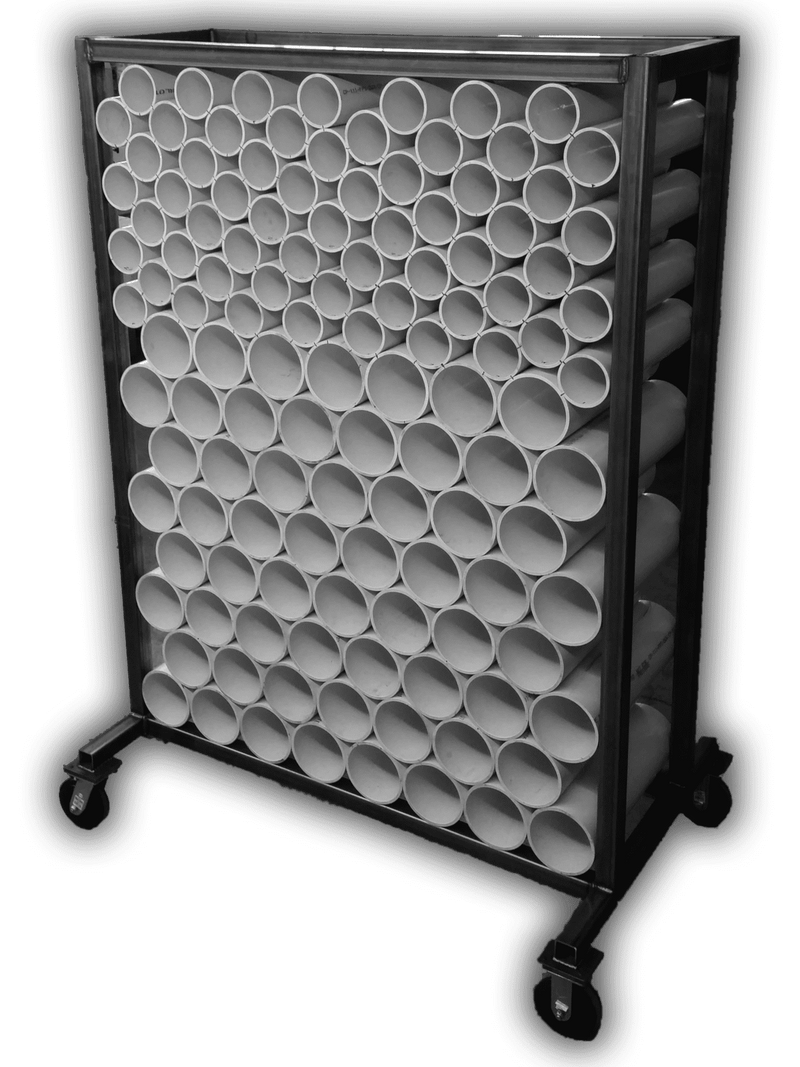

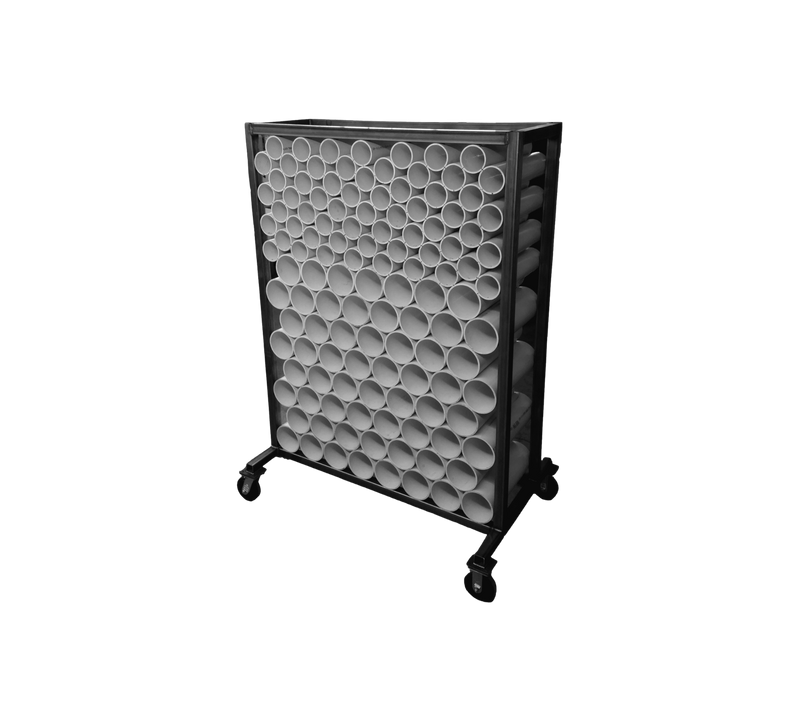

Supercell Print Cylinder Cart
- P/N SUPER-CYL-CART
- Steel Frame with PVC up to 22″
- Heavy Duty Wheels: 2 Fixed, 2 Swivel
- Easy to Move from One Location to Another
- Can Be Modified to Fit Your Cylinder Inventory
- Wheels Can Be Removed for Permanent Positioning
- 2 Standard Carts Available
- 120 Cylinder Model 2/ 4″ & 6″ Diameter PVC Pipes
- 90 Cylinder Model w/ all 6″ Diameter PVC Pipes
- Custom Sizes Available!
- Call for additional details.

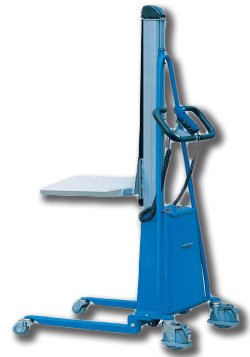

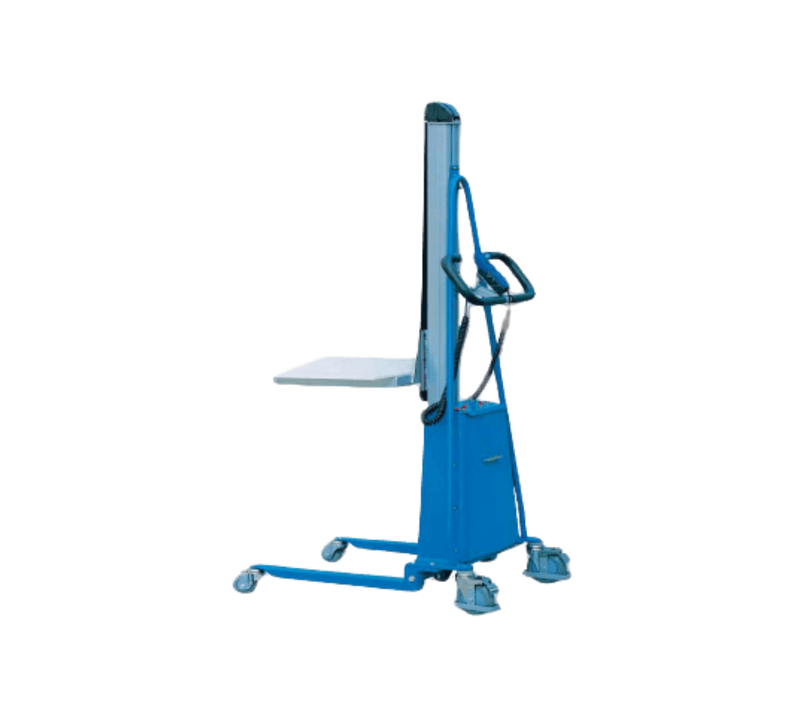

Supercell Electric Roll Lifters
- P/N QDP-150 & QDP-250
- Available in 59″ & 70″ Lift Heights
- All Swivel Casters
- Highly Maneuverable
- Automatic On-Board Charger & Cord
- Many Optional Attachments Available
- Designed for Multiple Material Handling Applications
- Call for additional details.

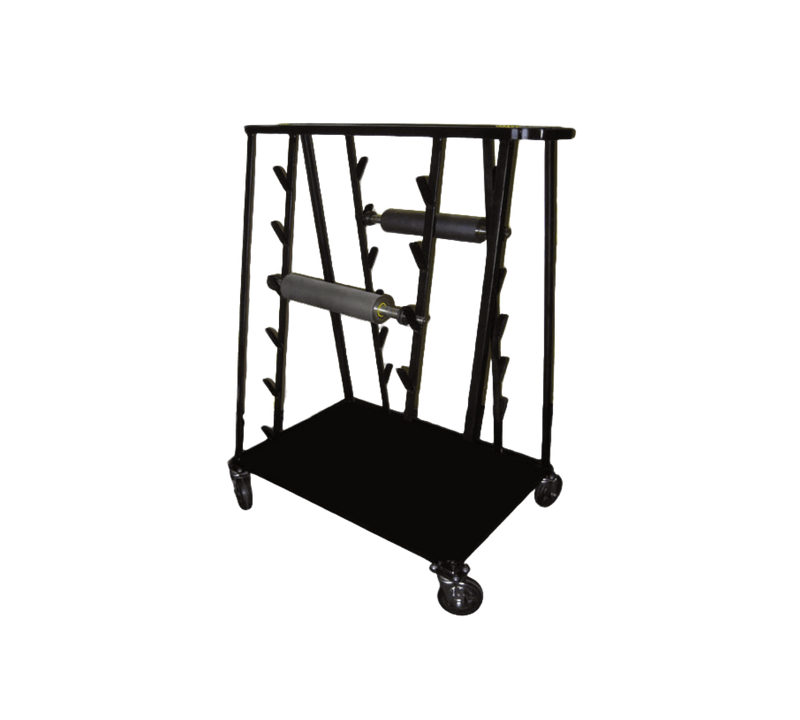

Supercell Anilox Service Cart
- P/N SUPER-ANILOX-24
- Up to 24 Roll capacity, up to 16″ face length
- Up to 4″ outside diameter, 1/4 thick
- Holds up to an 18.5″ face length
- Holds up to a maximum weight of 1000 lbs
- Steel structure with heavy-duty swivel wheels
- Easy to move from one location to another with handle
- Dimension: Width 28″, Height 42″, Length 30″
- Optional SuperCell Anilox roll covers available
- Wheels can be removed for permanent positioning
- Custom Sizes Available!
- Call for additional details.

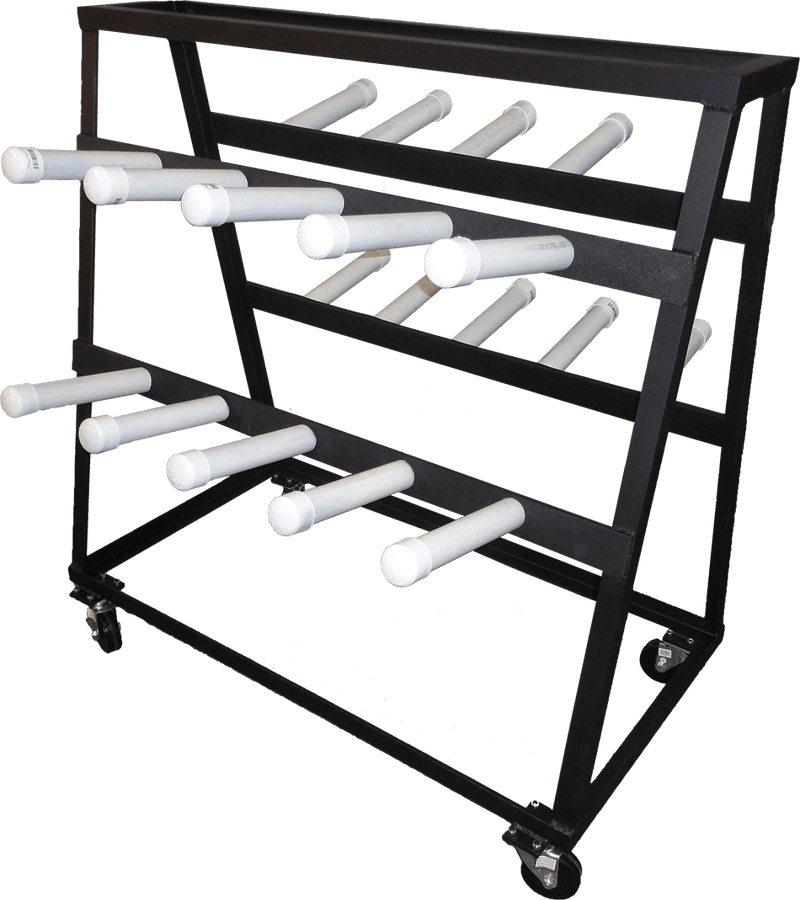

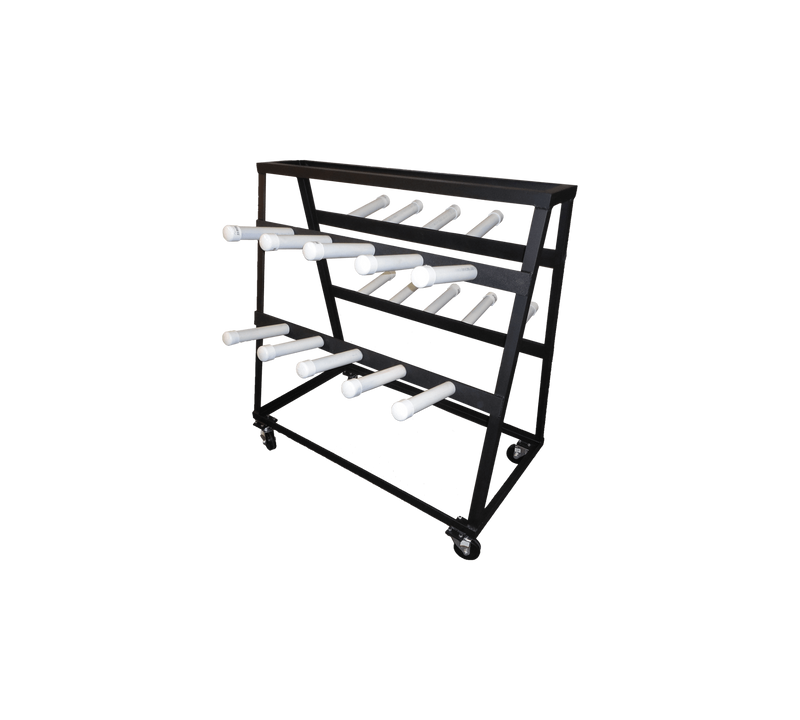

Supercell Anilox Sleeve Cart
- P/N SUPER-ANILOX-SP
- Up to 20 Sleeve Capacity
- Up to 5″ Outside Sleeve Diameter
- Holds Up to 20 Anilox Sleeves
- PVC Supports to Minimize Scratching the Inside of the Sleeve
- Steel Structure w/ 5″ Heavy-Duty Swivel Wheels
- Easy to Push/Pull From One Location to Another with Handle
- This is an “A” Frame Design
- Wheels Can Be Removed for Permanent Positioning
- Other Custom Sizes Available.
- Call for additional details.

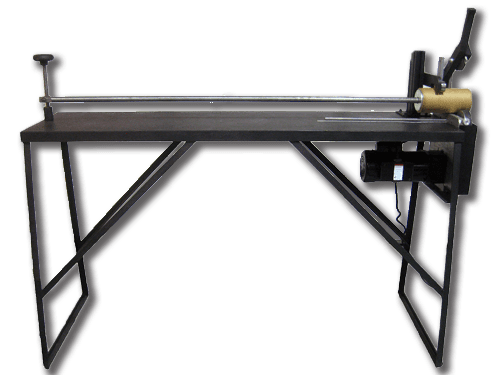

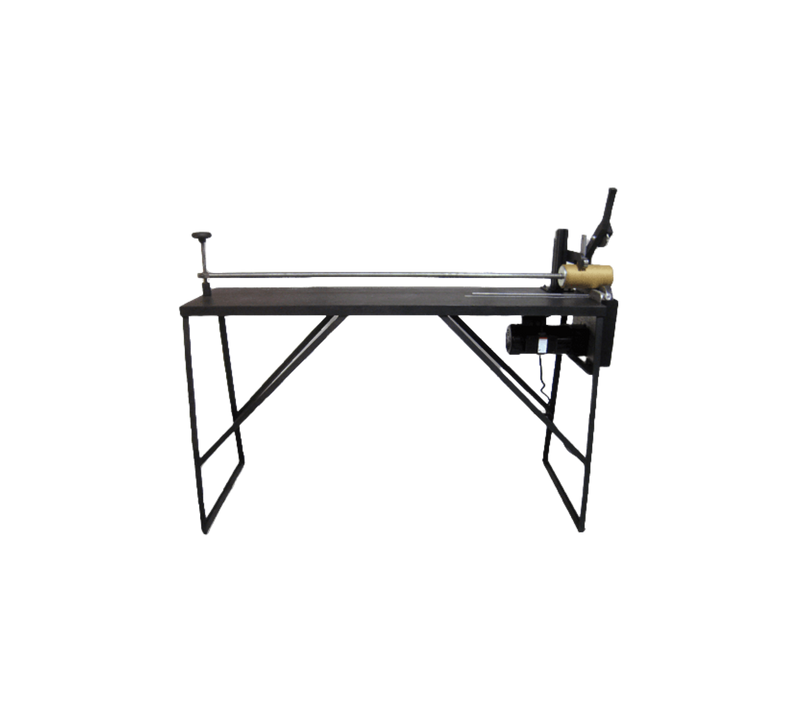

Supercell Manual Corecutter
- P/N SUPERCUTTER
- 60″ raw tube handling capacities
- Standard 3″ mandrel and anvil
- Includes end stop 1″ through 6″ working I.D. range
- Smooth and efficient operation
- Virtually maintenance-free
- Other Semi-Automated Units Available!
- Custom Sizes Available!
- Call for additional details.

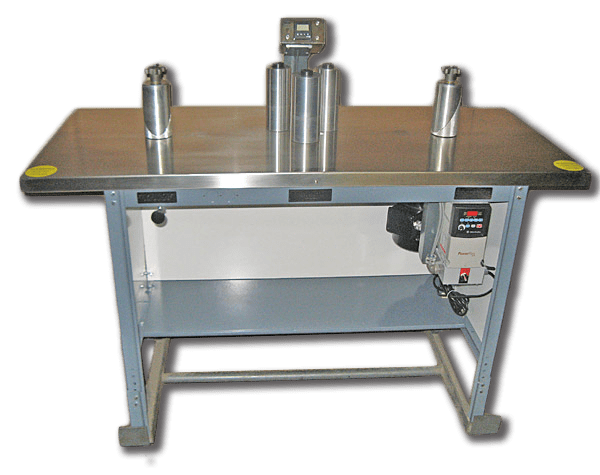

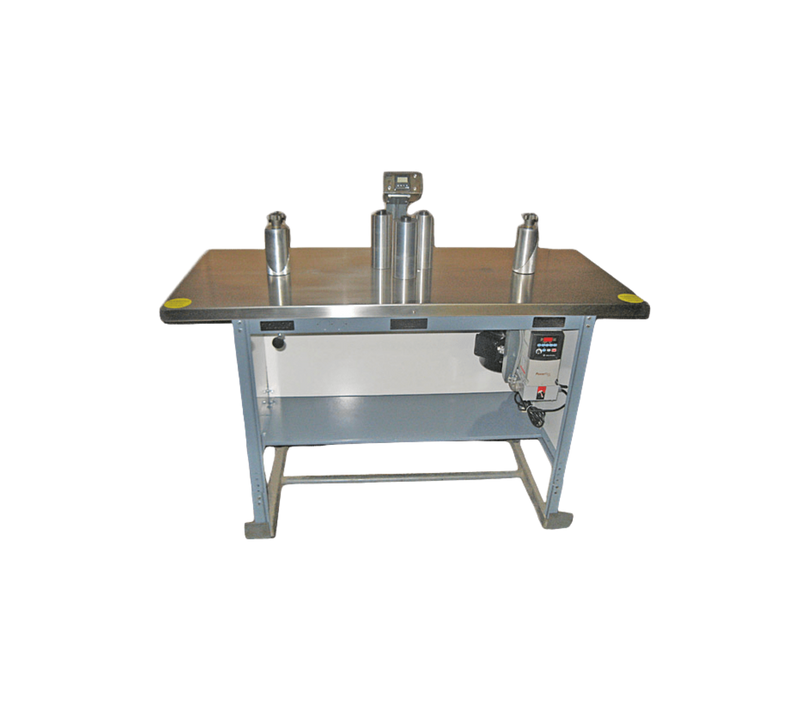

Supercell Economy Table-Top Rewinder
- Available in 7″ & 10″ web width
- 1 HP heavy-duty motor
- Incrementor counter
- Blade-style coreholders
- 30″ x 48″ tabletop
- DC manual speed control
- 28″ unwind
- 24″ rewind
- Custom Sizes Available!
- Call for additional details.

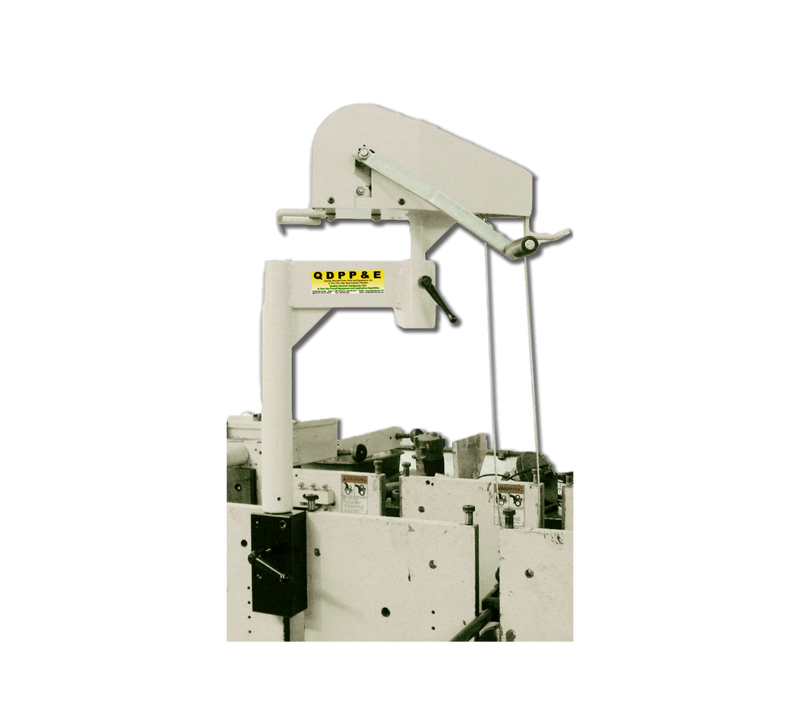

Supercell Economy Die Hoist
- P/N ECONO-HOIST
- With Removable Press Mount
- 360 Degree Rotation
- Lift capacity of 300 lbs
- Can be easily removed and relocated
- Works great on Mark Andy presses
- Custom design, sizes and fabrication available
- Call for additional details.

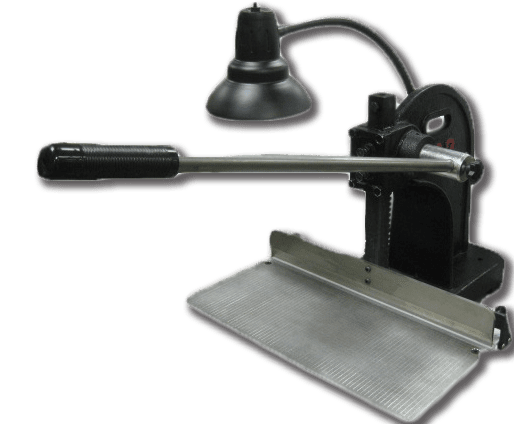

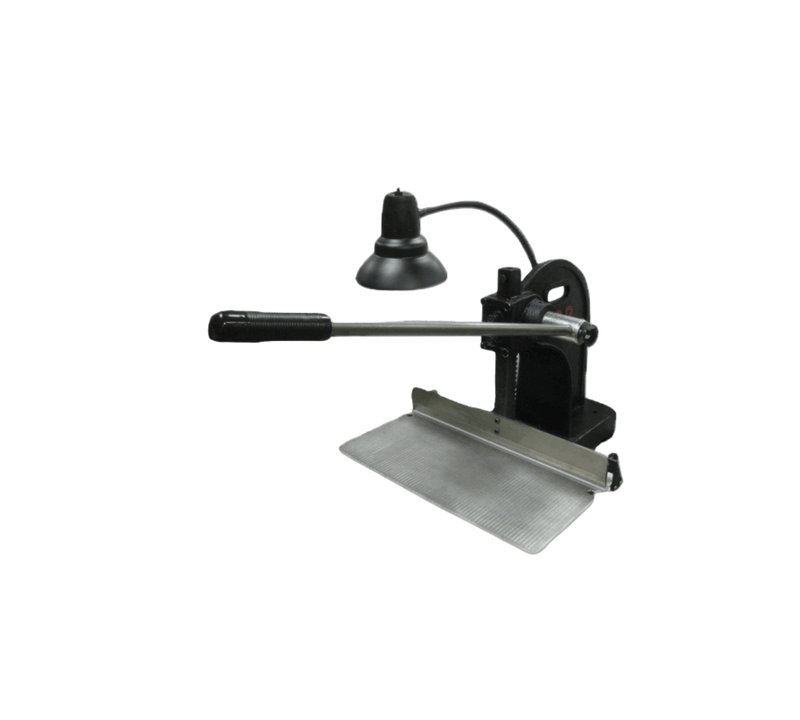

Supercell Platecutter
- Increased Productivity
- Eliminate Ruined Plates
- Produce Beveled Edges
- Trim Plates to Final Size
- Available in 11.5″ (PCA-11.5) and 18″ (PCA-18)
- Other Custom Sizes Available
- Call for additional details.

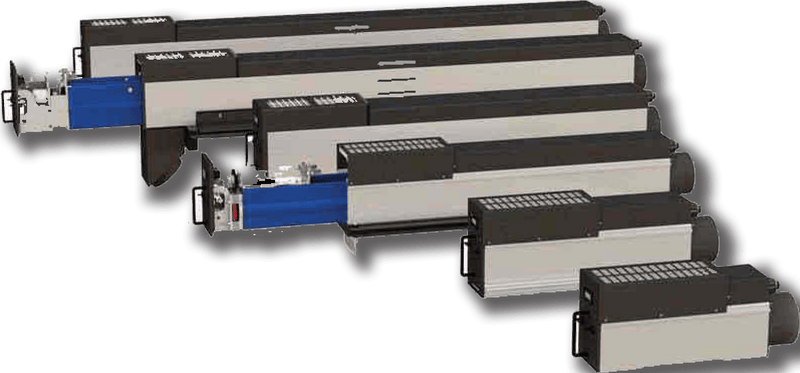

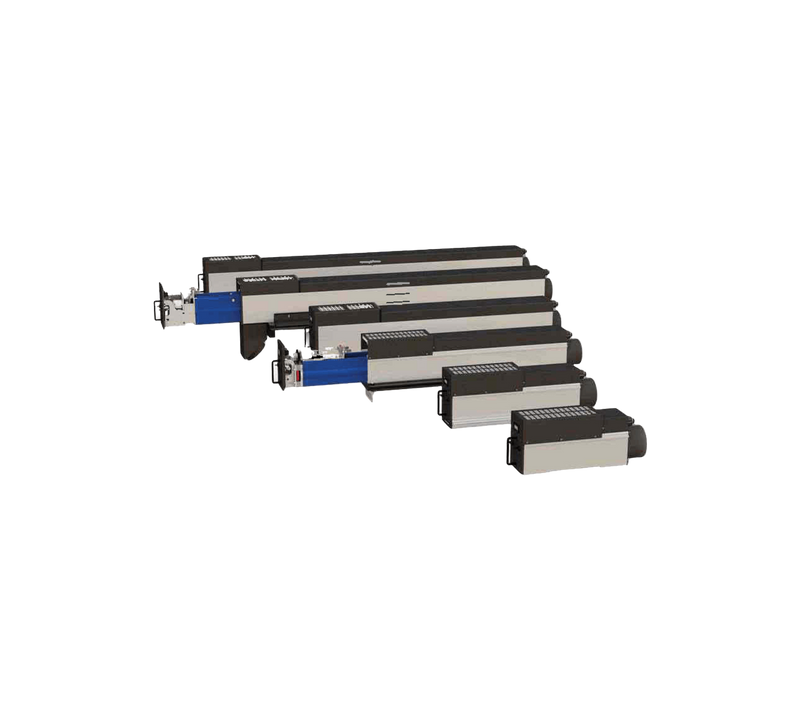

Supercell UV Curing Systems
- Arc lengths from 9″ to 24″
- Multiple lamp intensities: 200, 300 & 400 WPI
- Slide-In, Slide-Out Lamp Module
- Exhaust blower
- Portable control panel
- Quick-Change lamp cassette
- Elliptical reflector extrusion
- Multi focal point reflector design
- Idlers and coll UV at additional cost
- Call for additional details.

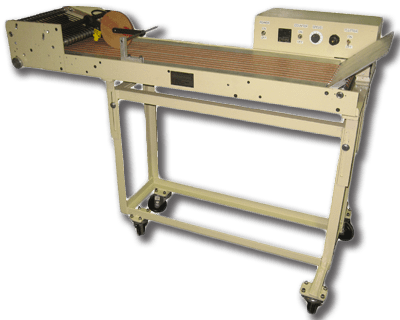

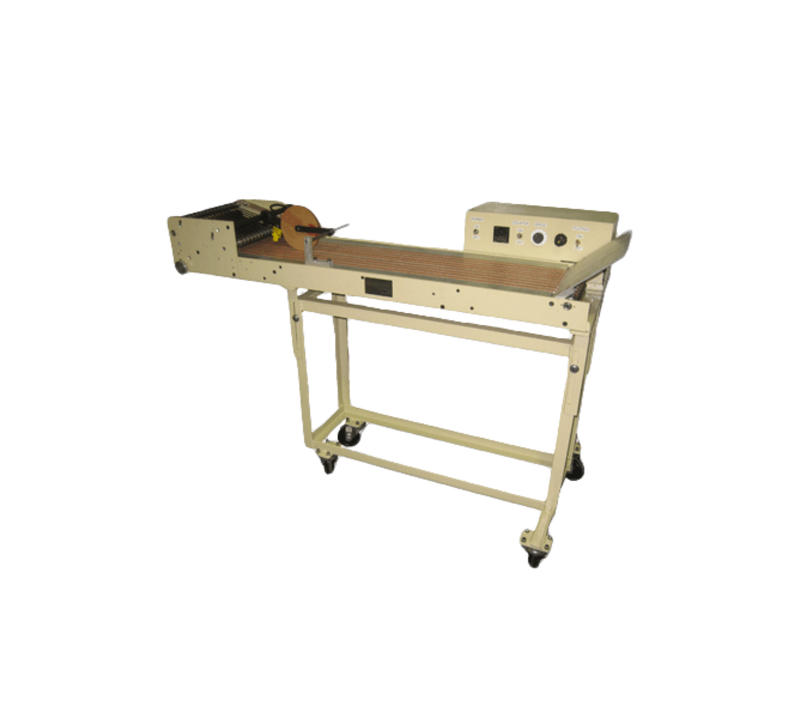

Supercell Stacker / Conveyor / Bottom Stacker
FOR ALL 7″, 10″, 13″ & 16″ MARK ANDY PRESSES
- Individual Label Count
- Photo-Optic Sensor for Count Input
- Adjustable Back-Stacking Plate
- Adjustable Roll Away Cart Available Separately
- Custom Sizes Available
- Call for additional details.

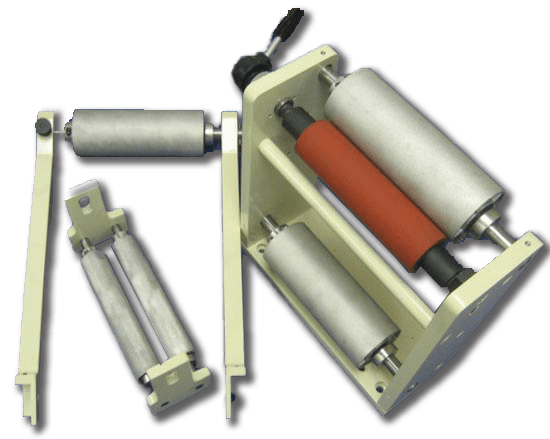

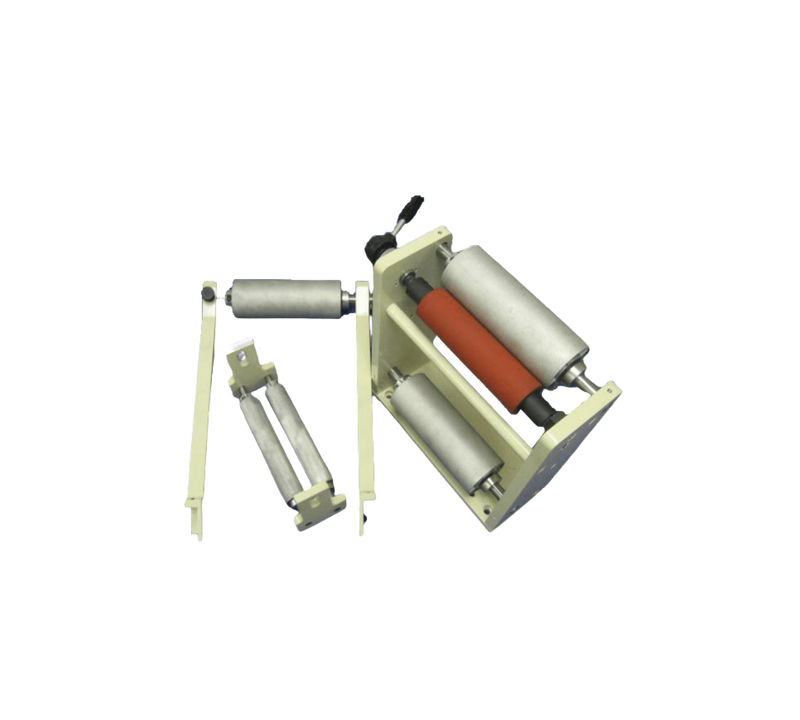

Supercell Delam / Relam Assembly
FOR ALL PRESSES
- P/N DELAM
- Enables printing on the adhesive side of the web (must have web turn bar)
- Custom Sizes Available
- Call for additional details.

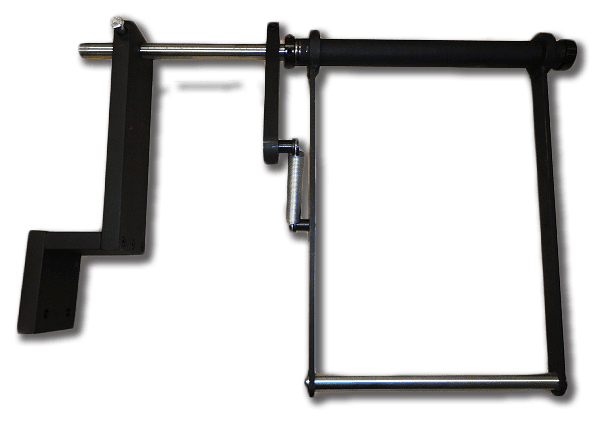

Supercell Lamination Silencer
- P/N LAM-SIL
- Up to 50% reduction of noise
- Easy to Mount
- Available in 7″, 10″ 13″ and 16″ Widths
- Custom Sizes Available
- Call for additional details.

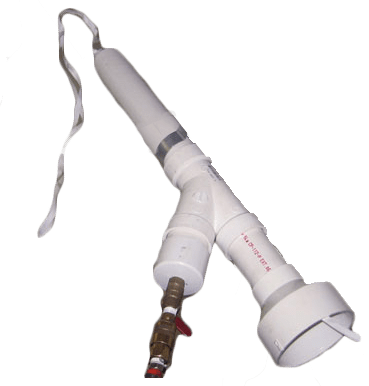

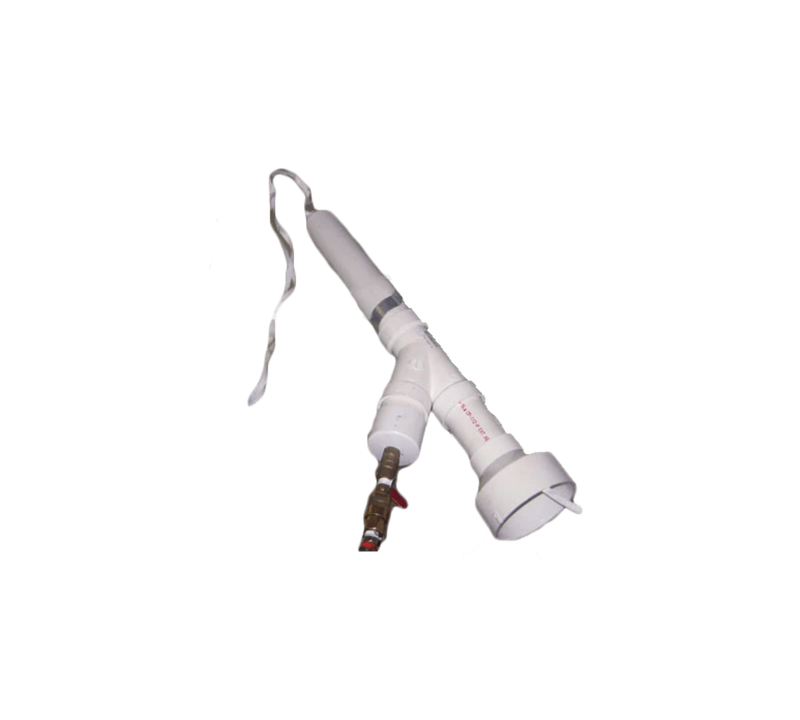

Supercell Economy Trim Removal System
- P/N ECONO-TRIM
- Compact and energy efficient
- Offers a number of ways to be mounted to the press
- Most economical method for trim removal in the market today
- Custom Sizes Available
- Call for additional details.

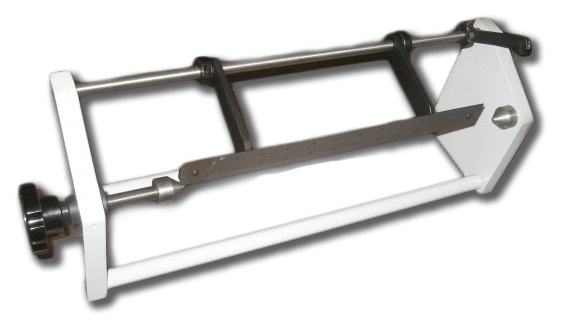

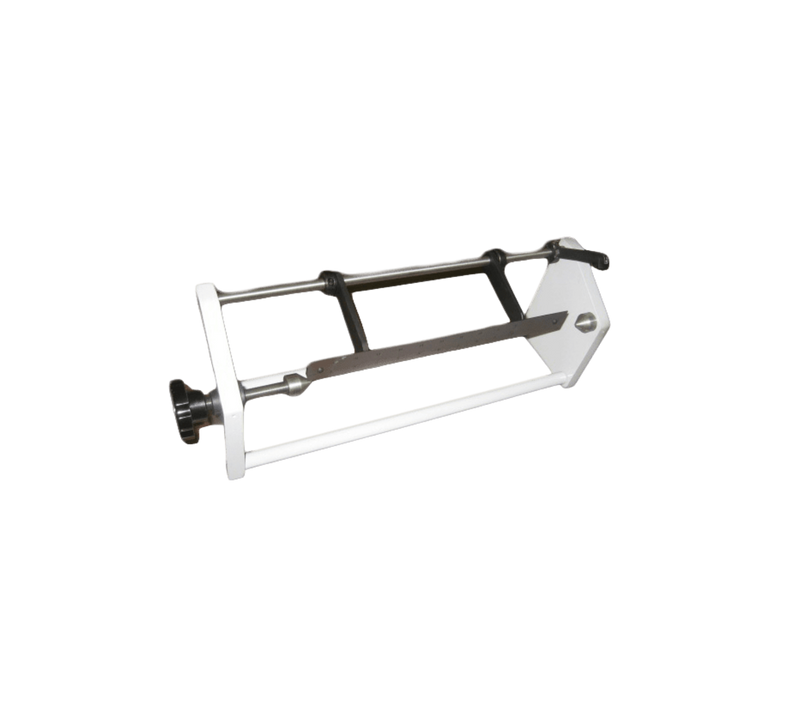

Supercell Economy Plate Mounter
FOR ALL PRESSES
- P/N EPM
- Accurately mounts plates around a cylinder
- Easy positioning across the cylinder
- Available for all presses in 7″, 10″ 13″ and 16″ widths
- Custom Sizes Available
- Call for additional details.

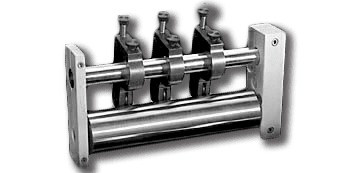

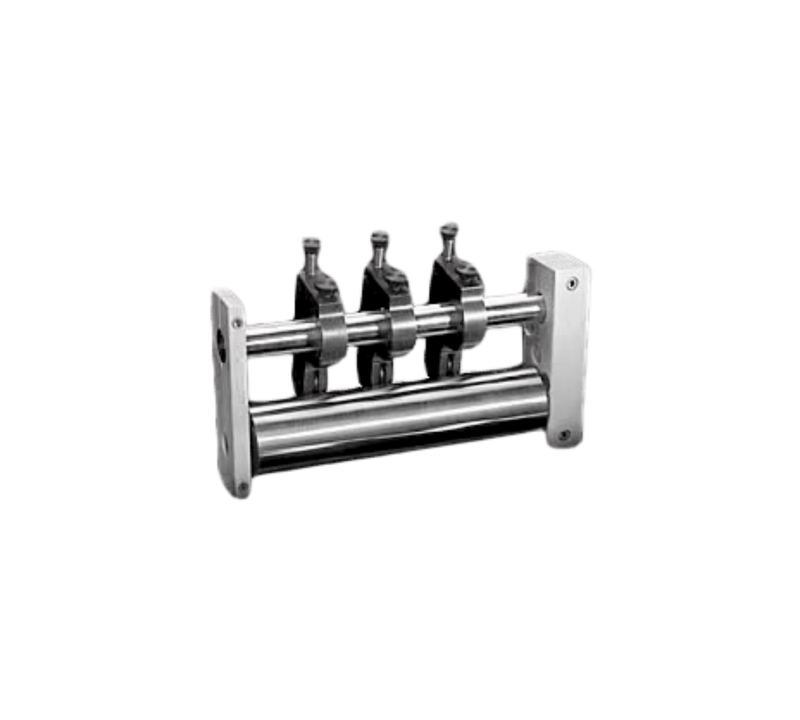

Supercell Rd Scorer Blade Unit
- P/N RD- (size)
- Fully hardened anvil roll
- Adjustable blade pressure
- Units come with slitter holders and blades
- Perform scoring and slitting
- Ball bearing design
- Available in: 7”, 10”, 13”, 16” & more
- Custom Sizes Available
- Call for additional details.
About
Supercell manufactures a comprehensive range of flexographic pressroom equipment and accessories, all designed and built in the USA. The product line includes ultrasonic anilox cleaning systems, roll lift carts, die hoists, print cylinder carts, anilox service carts, core cutters, table-top rewinders, plate cutters, UV curing systems, stackers, trim removal systems, plate mounters, and specialty accessories for narrow-web presses.
Every Supercell product is engineered for practical use in production environments—built with durable materials, straightforward operation, and serviceability in mind. Custom sizes and configurations are available across the product line, allowing printers to specify equipment that fits their exact facility layout and production requirements.
Supercell equipment is designed to solve common pressroom challenges: efficient roll handling, proper anilox maintenance, accurate plate mounting, and effective trim removal. By manufacturing in-house, Q360 Group eliminates overseas lead times, distributor markups, and the complexity of working through multiple vendors. Printers get American-made quality with direct manufacturer support and fast turnaround on custom builds.
History
Supercell was developed by Q360 Group to address a gap in the flexographic equipment market: high-quality, American-made pressroom accessories at fair pricing with responsive support. Recognizing that most auxiliary equipment was either imported with long lead times or marked up through multiple distributors, Q360 Group established Supercell as an in-house manufacturing line to provide printers with better options.
The Supercell product line grew from direct feedback and long-term relationships with printers who needed reliable, well-built equipment without the hassle of overseas sourcing or multi-vendor coordination. By designing and manufacturing in the USA, Supercell products can be customized to customer specifications, delivered faster, and supported directly by Q360 Group's technical team.
Today, Supercell operates as Q360 Group's manufacturing division, producing equipment that integrates seamlessly with the company's parts inventory, equipment services, and field support capabilities. Printers benefit from working with a single partner for equipment, parts, and service - backed by 250+ years of collective flexographic experience and a commitment to American manufacturing.
