The Lederle 7000 Series Rewind Tables are built on a proven heavy-duty ball bearing design for long-term, reliable performance - fully customizable to match exactly what your production floor needs.
Request a Quote
Rewind quality is one of those things that doesn't get much internal attention until a customer calls about it.
Telescoping rolls. Inconsistent tension. Edge damage on finished product. These problems almost always trace back to equipment that wasn't spec'd correctly for the operation running it.
The Lederle 7000 Series Rewind Tables are built to spec for each operation - web width, unwind and rewind capacity, power configuration, and more. Every table is tailored to fit what your production floor actually needs. Lederle Machine Co. has been manufacturing precision rewind equipment for the flexographic industry for decades, and Q360 acquired Lederle in 2022 bringing that manufacturing capability in-house.
Two common configurations are outlined below. If your requirements look different, tell us what you need and we'll build it.
AC drive system available in 110v or 220v. Available in 7" and 10" web widths standard, with custom widths available.
Heavy-duty ball bearing construction across every unit. PLC logic control, variable speed control, reversible rewind, unwind tension control, HMI counter display, photo eye label counter sensor, dual quick-change 3" OD air coreholders, and tape dispenser - standard on every configuration.

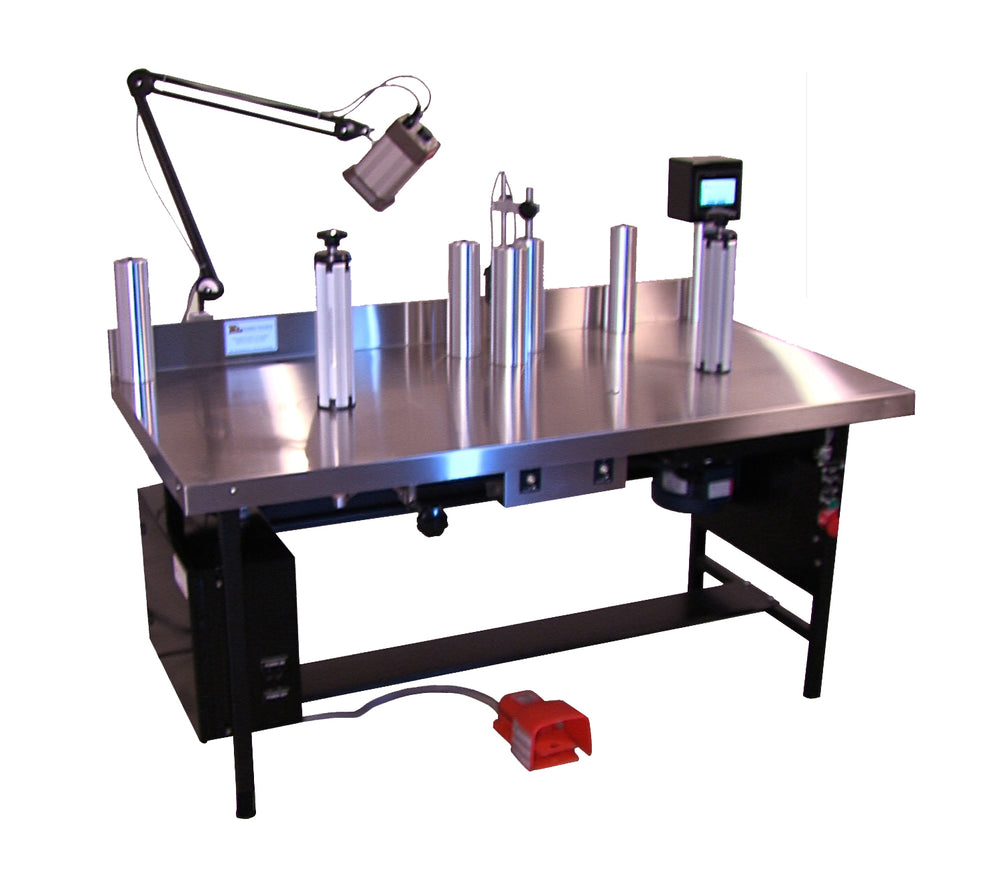

24" x 60" heavy gauge stainless steel top. Unwind capacity: 24". Rewind capacity: 18". Web width 7" and 10" (178mm, 254mm). Variable speed control via hand and foot pedal. 1.5HP heavy duty AC motor. 10" incremental length counter (12" available).

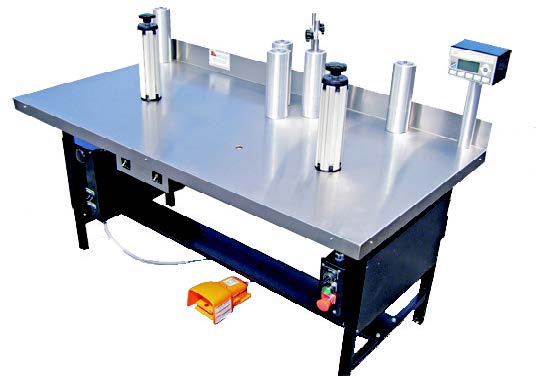

30" x 60" heavy gauge stainless steel top. Unwind capacity: 30". Rewind capacity: 24". Web width 7" and 10" (178mm, 254mm). Variable speed control via hand and foot pedal. 1.5HP heavy duty AC motor. 10" incremental length counter (12" available).
Every Lederle rewind table is built to order. Web width, unwind and rewind capacity, table dimensions, power configuration -- all of it can be tailored to your specific production requirements. If what you need isn't listed above, that's not a problem. Tell us what you're running and we'll build the right table for it.
Call 800-646-2212 or use the button below.
